AC143-T616T

  • 品名:AC143-T616T
  • 材質:PC
  • 類別:Module,4 IN 1

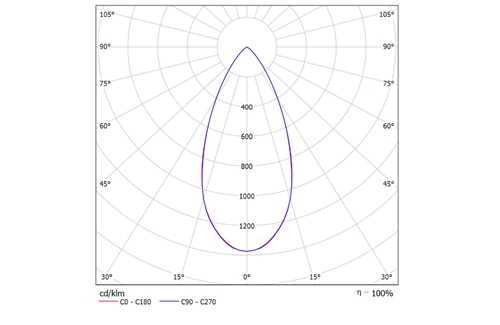

  • 光型:Lambertian
  • 尺寸:70mm x 70mm x 10.4mm (PIN5.0mm)
  • 角度:48.2°

LED:

  • Luminus
    • SST-20-W
  • Samsung
    • LH508A
    • LH351D
  • Seoul
    • MJT5050
    • SZ5-Mx
  • Bridgelux
    • 5050
  • Nichia
    • 144AM
    • 585AR
    • 219F
    • B35AM
  • Osram
    • OSLON Square
    • DURIS S8
    • DURIS S10
    • OSCONIQ P3737
    • OSCONIQ P7070
    • OSTAR_Q8WP
    • OSCONIQ S5050
  • Lumileds
    • Luxeon MZ
    • Luxeon 5050
    • Luxeon V
    • Luxeon MX
    • Luxeon V2
    • Luxeon 7070
  • Cree
    • XP-L HI
    • XHP35-HI
    • XP-G2
    • XT-E White
    • XM-L
    • XP-L
    • XM-L2
    • XHP35-HD
    • MK-R
    • MK-R2
    • MHB-A
    • XHP70
    • XP-G3
    • ML-E
    • MHB-B
    • XP-L2
    • XHP50.2
    • XHP70.2
    • JR5050
    • XHP35.2
    • XML_Color
    • XM-L3
    • XHP35.2-HI
    • XHP50.3-HD
    • XHP50.3-HI
    • Jx2835
    • CMB13xx
    • XP-G4

應用:

  • Portable light source
  • Decorative and entertainment lighting
  • Marker lights
  • Indoor and outdoor commercial and residential architectural lighting
  • Signal and symbol luminary for orientation
  • Spot lighting / high contrast lighting
  • Glass cabinet lighting
  • Effect illumination: starry sky
