T230H-HT

  • 品名:T230H-HT
  • 材質:PC
  • 類別:TIR Lens

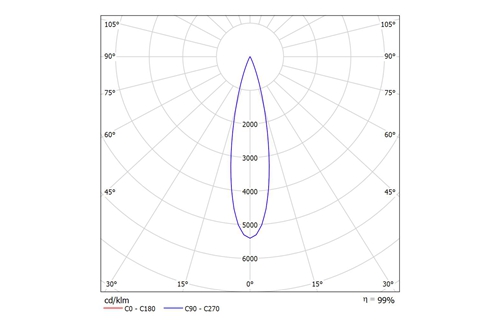

  • 光型:Lambertian
  • 尺寸:35mm x 20.2mm
  • 角度:23°

LED:

  • Luminus
    • CXM-6
    • SST-20-W
    • CXM-4
    • CXM-3
  • Samsung
    • LH351D
  • Seoul
    • SZ5-Mx
  • Bridgelux
    • V4 HD
    • V6 HD
    • V3 HD
    • V6
  • Citizen
    • CLU70x
    • CLU7Ax
    • CLU7Bx
    • CLU7Lx
    • CLU7Sx
    • CLU7Rx
  • Nichia
    • COB S024B
    • COB S024Z
    • COB S007Z
    • 219F
    • 519A
    • B35AM
  • Osram
    • OSLON SSL150
    • OSLON Square
    • OSLON SSL80
    • DURIS S8
    • DURIS S10
    • OSCONIQ P3737
    • SOLERIQ S6
  • Lumileds
    • Luxeon MZ
    • Luxeon 5050
    • Luxeon MX
    • Luxeon V2
    • Luxeon COB 1202HD
    • Luxeon COB-HD S02H6
    • Luxeon HL2X
    • Luxeon 7070
    • Luxeon COB-HD S02H4
  • Cree
    • XP-L HI
    • XHP35-HI
    • XP-G2
    • XP-E2
    • XP-L
    • XM-L2
    • XHP35-HD
    • XP-G3
    • XP-L2
    • XHP50.2
    • XHP70.2
    • XHP35.2
    • CMA1306
    • CMA1303
    • XM-L3
    • XHP35.2-HI
    • JB5630
    • XHP50.3-HD
    • XHP50.3-HI
    • CXB13xx
    • CHA0304
    • CHA0410
    • CHA0612
    • CMB13xx
    • XP-G4
    • XHP70.3-HI
    • XHP70.3-HD

應用:

  • Portable light source
  • Decorative and entertainment lighting
  • Marker lights
  • Indoor and outdoor commercial and residential architectural lighting
  • Signal and symbol luminary for orientation
  • Spot lighting / high contrast lighting
  • Glass cabinet lighting
  • Effect illumination: starry sky
