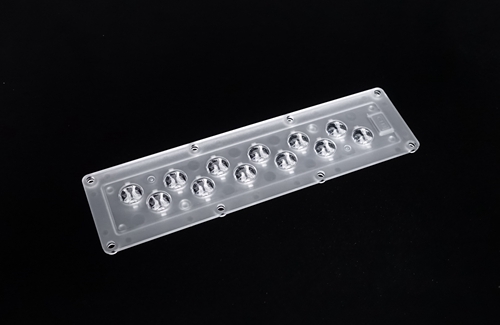

AC113-L739T
品名：AC113-L739T
材質：PC
類別：Module,12 IN 1,Street Lighting
光型：Symmetric
尺寸：151mm x 40mm x 3.95mm (PIN3.0mm)
角度：66°X156°
LED：
Nichia
219F
Cree
XP-G
XP-L HI
XT-E White
應用：
Street lighting for IES classification Short Type II
Tunnel lighting
Marker lights
Indoor and outdoor commercial and residential architectural lighting
Special backlighting
Signal and symbol luminary for orientation
