AC76-L812T
品名：AC76-L812T
材質：PC
類別：Module,4 IN 1

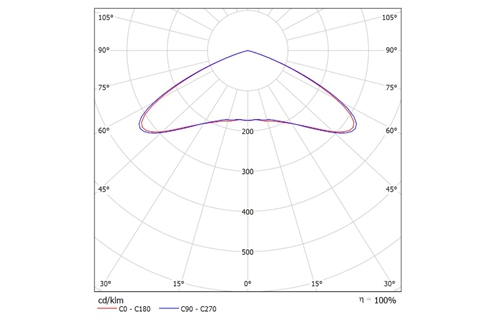

光型：Lambertian
尺寸：58mm x 58mm x 9.8mm (PIN4.5mm)
角度：131.2°
LED：
Samsung
LH351B
LH351C
Seoul
MJT5050
Bridgelux
5050
Nichia
488AR
144AM
585AR
757G
519A
Osram
OSLON Square
DURIS S8
DURIS S10
OSCONIQ P3737
OSCONIQ P7070
OSCONIQ S5050
Lumileds
Luxeon 5050
Luxeon V
Luxeon V2
Luxeon HL2X
Luxeon 7070
Cree
XP-G2
XM-L
XM-L2
XHP35-HD
XP-G3
MHB-B
XP-L2
XHP50.2
JR5050
XHP35.2
XM-L3
CLQ6A
XHP50.3-HI
Jx2835
XP-G4
XHP70.3-HI
應用：
Tunnel lighting
Marker lights
Indoor and outdoor commercial and residential architectural lighting
Signal and symbol luminary for orientation
