R519-JM

  • 品名：R519-JM
  • 材質：PC with AL coating
  • 類別：Reflector

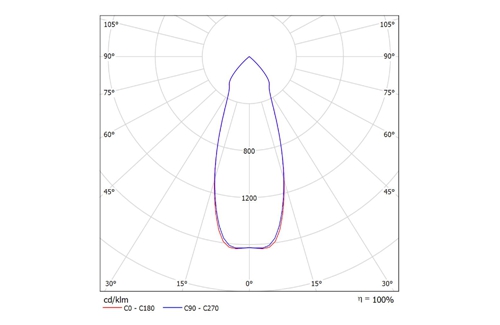

  • 光型：Lambertian
  • 尺寸：49mm x 20.8mm
  • 角度：39°

LED：

  • Panasonic
    • LUGA DMC115
  • Luminus
    • CHM-11
    • CXM-14
    • CXM-6
    • CXM-4
    • CxM-9
    • CXM-3
    • CXM-11
  • Bridgelux
    • V4 HD
    • V6 HD
    • V9 HD
    • Vesta 9mm_TW
    • Vesta 6mm_TW
    • Vesta 6mm_DW
    • Vesta 9mm_DW
    • V3 HD
    • V6
    • V8
    • V10
    • V13
    • V15
    • V11 HD
    • Vesta 13mm_TW
  • Xicato
    • XTM_9mm
  • Citizen
    • CLU02x
    • CLU71x
    • CLU70x
    • CLU7Ax
    • CLU7Bx
    • CLU03x
    • CLU72x
    • CLU73x
    • CLU7Lx
    • CLU7Sx
    • CLU7Rx
  • Nichia
    • COB J108B
    • COB L060B
    • COB S024B
    • COB L024Z
    • COB S024Z
    • COB J130B
    • COB J048Z
    • COB S007Z
    • COB L016Z
  • Osram
    • SOLERIQ S13
    • SOLERIQ S9
    • SOLERIQ S15
    • SOLERIQ S6
  • Lumileds
    • Luxeon M
    • Luxeon COB 1202S
    • Luxeon COB 1202
    • Luxeon COB 1203
    • Luxeon COB 1204
    • Luxeon COB 1205
    • Luxeon COB 1208
    • Luxeon COB 1204HD
    • Luxeon COB 1202HD
    • Luxeon COB 1205HD
    • Luxeon COB-HD S02H6
    • Luxeon COB-HD S02H4
    • Luxeon COB-HD S04H9
  • Cree
    • CXB1310
    • CXB1304
    • CXB1507
    • CXB1512
    • CXB1816
    • CXB1820
    • CXB1520
    • XHP50.2
    • CMA1840
    • CMT1945
    • CMA1825
    • CMA1516
    • CMA1306
    • CMT1930
    • CMT1925
    • CMT1922
    • CMA1303
    • XM-L3
    • CMU10xx
    • CXB13xx
    • CHA0304
    • CHA0410
    • CHA0612
    • CHA0825
    • CXB15xx
    • CXB18xx
    • CMB15xx
    • CMB13xx
    • CMB18xx
    • CMB1840

應用：

  • Portable light source
  • Decorative and entertainment lighting
  • Marker lights
  • Indoor and outdoor commercial and residential architectural lighting
  • Signal and symbol luminary for orientation
  • Spot lighting / high contrast lighting
  • Glass cabinet lighting
  • Effect illumination: starry sky
