B94H-L709T-009
Products：B94H-L709T-009
Material：PC
Category：Lens Array,9 IN 1,Street Lighting
Beam Type：Symmetric
Size：58mm x 58mm x 4.27mm

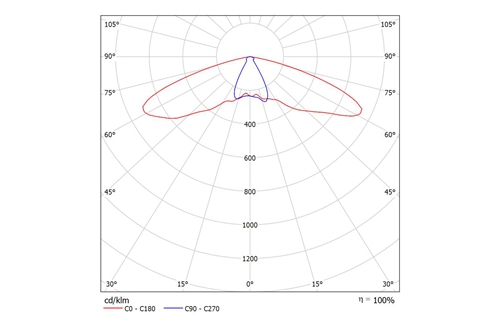

Angle：IESNA SHORT, TYPE I
LED：
Toshiba
TL1L4
Nichia
219F
519A
Osram
DURIS S5
OSLON SSL80
DURIS S8
OSCONIQ P3737
DURIS E2835
Lumileds
Luxeon T
Luxeon Q
Luxeon N
Luxeon V2
Luxeon 2835
Cree
XP-G
XP-L HI
XB-H
XP-G2
XT-E White
XP-G3
ML-E
Jx2835
Application：
Street lighting
Tunnel lighting
Marker lights
Indoor and outdoor commercial and residential architectural lighting
Special backlighting
Signal and symbol luminary for orientation
