R112-34

  • 品名：R112-34
  • 材質：PC with AL coating
  • 類別：Reflector

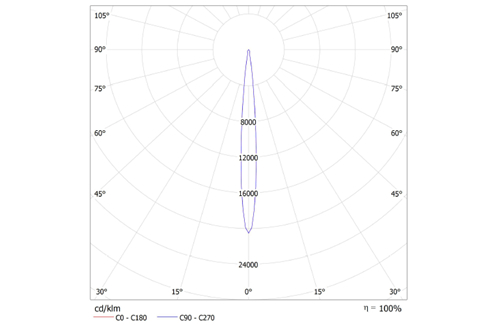

  • 光型：Lambertian
  • 尺寸：82mm x 52.81mm
  • 角度：9°

LED：

  • Sharp
    • Mega Zenigata
  • Citizen
    • CLU028
    • CLU048
  • Nichia
    • COB L036B
    • COB J108B
    • COB L060B
    • COB S024B
    • COB S024Z
    • COB J130B
  • Osram
    • SOLERIQ S13
    • SOLERIQ S19
    • SOLERIQ S15 Gen5
  • Lumileds
    • Luxeon COB 1202S
    • Luxeon COB 1202
    • Luxeon COB 1203
    • Luxeon COB 1204
    • Luxeon COB 1205
    • Luxeon COB 1208
    • Luxeon COB 107
    • Luxeon COB 205
    • Luxeon COB 207
    • Luxeon COB 209
    • Luxeon COB 105
    • Luxeon COB 109
    • Luxeon COB 1211
  • Cree
    • CXA1507
    • CXA1512
    • CXA1520
    • CXA1816
    • CXA1820
    • CXA1830
    • CXA2520
    • CXA2530
    • CXA3070
    • CXA2590
    • CXA3050
    • CXA1850
    • CXB1507
    • CXB1512
    • CXB1816
    • CXB1820
    • CXB1520
    • CXB1830
    • CMT2850
    • CMA2550

應用：

  • Portable light source
  • Decorative and entertainment lighting
  • Marker lights
  • Indoor and outdoor commercial and residential architectural lighting
  • Signal and symbol luminary for orientation
  • Spot lighting / high contrast lighting
  • Glass cabinet lighting
  • Effect illumination: starry sky
