AB124-L742T-012

  • 品名:AB124-L742T-012
  • 材質:PC
  • 類別:Street Lighting,Module,Waterproof module (with O-ring),12 IN 1,Lens Array

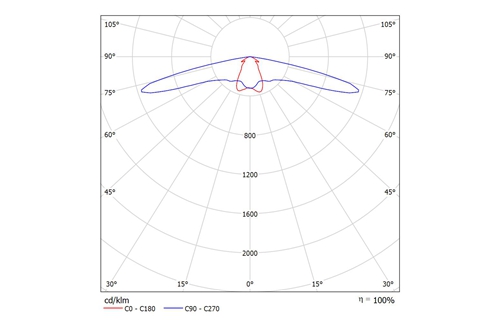

  • 光型:Symmetric
  • 尺寸:173mm x 71.4mm x 6.88mm (PIN3.0mm)
  • 角度:64°X156°

LED:

  • Samsung
    • LH351B
    • LH351C
  • Bridgelux
    • 5050
    • 3030
  • Nichia
    • 319B
    • 757G
    • 309B
  • Osram
    • OSCONIQ P3737
  • Lumileds
    • Luxeon 5050
  • Cree
    • XHP35.2

應用:

  • Street lighting
  • Tunnel lighting
  • Marker lights
  • Indoor and outdoor commercial and residential architectural lighting
  • Special backlighting
  • Signal and symbol luminary for orientation
